Sample pack

Sample export pack

Inspect real editor views and download an example drawing sheet with the current title block and key. All examples use fictional project details.

These are generic planning visuals only — no real client, site or project data. The paired editor views show one example; the PDF and its title block and key show a separate workshop example. To create your own exports, sign up for a Free Preview account and create a project.

Want to try your own export? Start a Free Preview project to export watermarked PNG/JPG visuals of your own plans.

Visual planning aid only. Not a RAMS, plan of work, HSE approval or compliance certification. Final review and statutory duties remain with competent professionals.

Generic planning symbols only. Not manufacturer-specific, not approved safety signage, not equipment specification, and not a substitute for RAMS, plans of work, competent review or statutory duties.

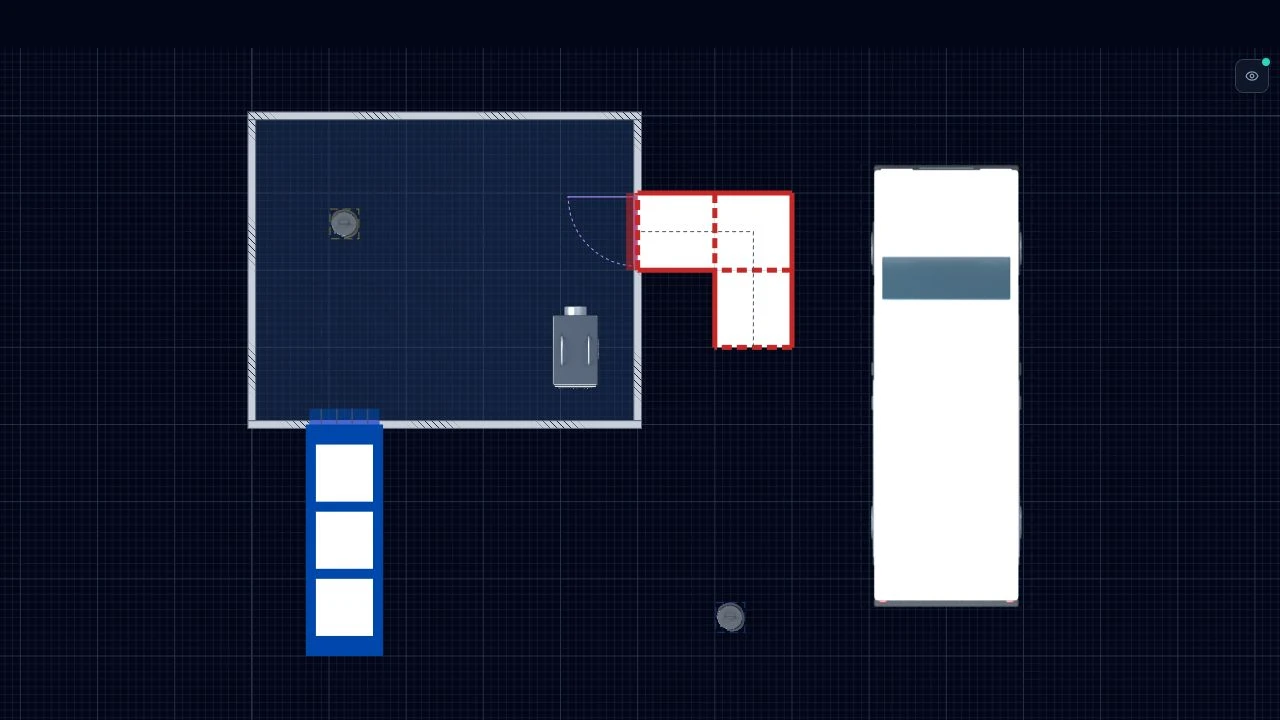

2D enclosure plan

Room, airlock, dogleg baglock, NPU and generic equipment

Example room with a straight airlock, dogleg baglock, NPU and panel van in the 2D editor

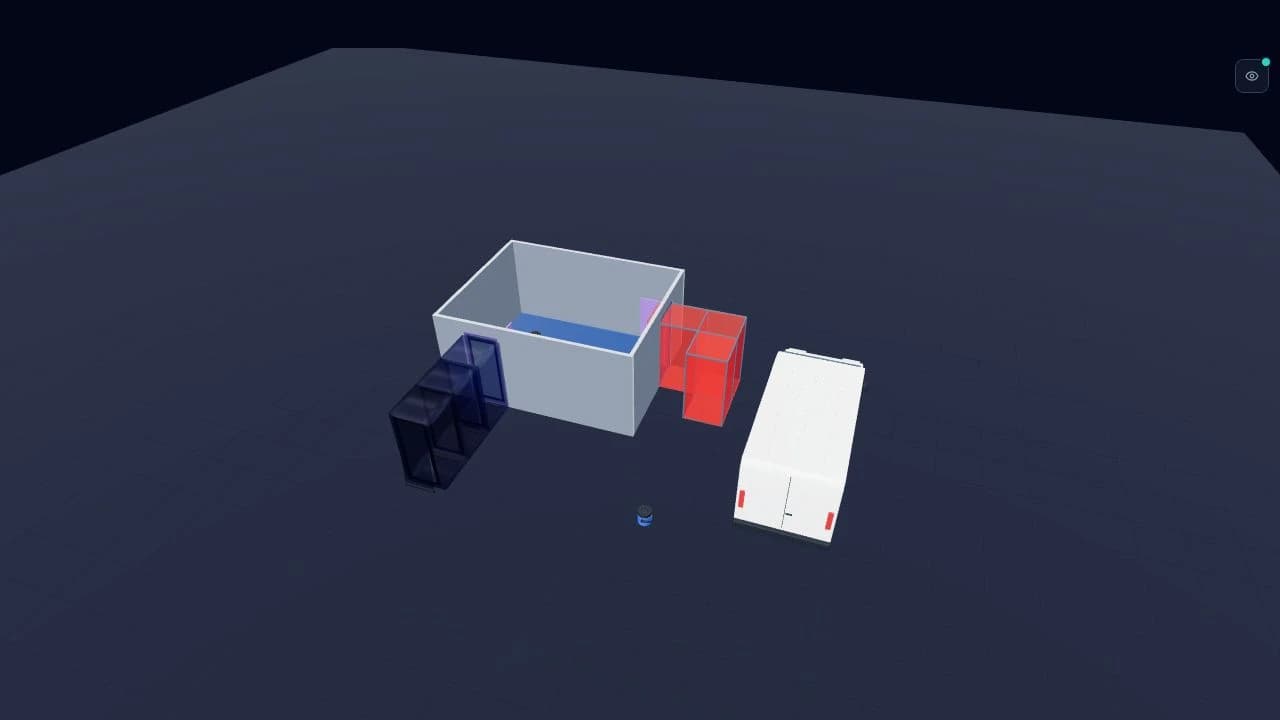

Matching 3D visual

Same project model as the 2D plan

The same example room and equipment in the 3D editor

Also included in real exports

  • Drawing key with visible object counts, material finishes and route styles in its own margin
  • Title block with project, drawing number, revision, status, client, site, date and scale (company logo on paid plans)

A complete drawing sheet

This A4 PDF was produced by the current exporter at 1:100. It includes two brick finishes, a dotted route, a drawing key, scale bar and title block. Print at actual size (100%) to preserve its stated scale.

Download sample PDF
Actual A4 PDF export of a fictional workshop at 1:100, with key margin, scale bar and title block

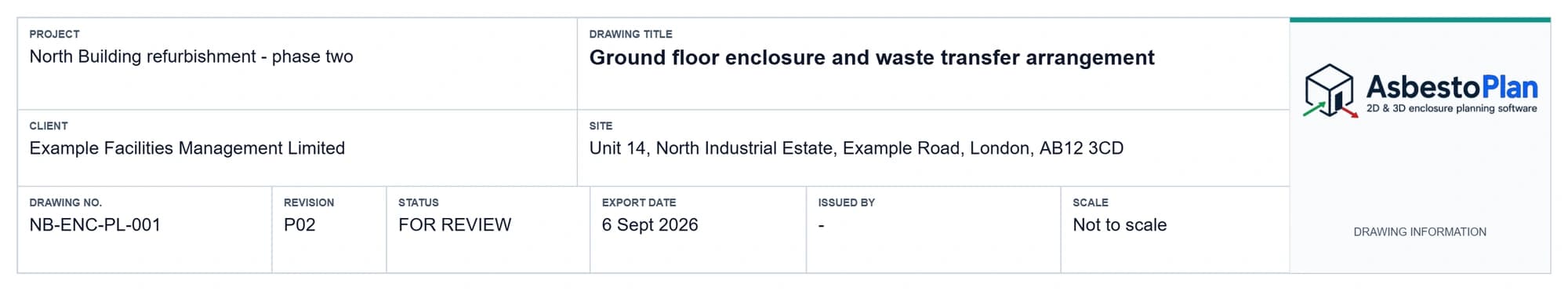

Title-block detail from the PNG export
Current export title block showing fictional project details, drawing number, revision, status and scale
Key-only export
Current drawing key with a dotted route, two brick finishes and separate object counts

Disclaimer: illustrative planning visuals only. Not HSE-approved, not a RAMS, not a plan of work and not a substitute for competent professional judgement or site-specific risk assessment.
