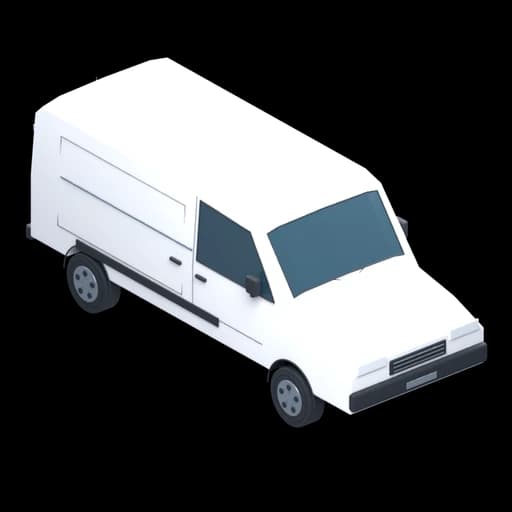

Panel Van (White)
Default model size: 2221 × 5730 × 2276 mm
Width × depth × height
Purpose-built for asbestos enclosure planning — 2D, 3D and a curated asset library.
Create asbestos enclosure drawings for RAMS and site briefings — without CAD
Draw clear 2D enclosure plans, add airlocks, baglocks, NPUs and routes, then export professional 2D and matching 3D visuals for project documents and site teams.
Free Preview — no card required. Free Preview includes 2 saved projects and watermarked exports. Upgrade when you need clean PDF/SVG exports, branding or unlimited projects. See the walkthrough.
See AsbestoPlan in actionEnclosure build · 0:45
What is AsbestoPlan?
AsbestoPlan is browser-based asbestos enclosure drawing software for asbestos contractors, supervisors, estimators and document teams. It helps users create 2D enclosure plans, matching 3D visuals, asset layouts, routes, title blocks and exports for RAMS, plans of work, client packs and site briefings. It is a planning and communication tool, not HSE approval, compliance certification or a replacement for competent professional judgement.
Built for professional asbestos planning workflows
Useful across your documents
Visuals for RAMS, plans of work, client packs and site briefings.
2D + matching 3D exports
Export both views with title blocks and a scene key baked in.
Planning support, not certification
Not HSE-approved or compliance-certified — a documentation tool.
You stay in control
Final enclosure design remains with competent asbestos professionals.
Security & Data Privacy — how projects, uploads and exports are protected.
Proof & workflow
Built for how asbestos teams actually plan enclosures
Draw rooms and walls, place enclosure equipment and export matching views for your existing project documents.
Enclosure-specific tools
Workflow shaped around enclosure drawing pain points — copied Visio stencils, slide-deck layouts and mismatched 2D/3D visuals — not a generic diagramming app rebranded for asbestos.
Before → after
- Old way
- Copy last job's PowerPoint, resize shapes, paste into RAMS
- AsbestoPlan
- Draw once, sync 2D + 3D, export with title block and scene key
Example workflow
Follow an example from room shell to assets, 3D review and export. The time needed depends on the layout and your familiarity with the editor. See the step-by-step guide.
The challenge
Enclosure visuals should be faster to produce and easier to read
Many teams still assemble plans from templates, hand sketches, or copied drawings. Clear enclosure visuals for RAMS and site briefings should not mean fighting with PowerPoint, Visio or copied old drawings.
General tools lack asbestos context
Office drawing software can produce plans, but it is rarely built around enclosure workflows, synced 2D/3D views, or a curated asbestos asset library.
Enterprise CAD needs specialist training
Full CAD and BIM platforms are powerful for building design, yet many enclosure plans must be produced quickly by supervisors and admin teams without a dedicated CAD operator.
3D is hard to keep in sync
Separate 3D modelling workflows can illustrate enclosures well, but maintaining a matching plan view alongside them adds time, rework and inconsistency.
Reused drawings drift
Copying old plans saves time, but visuals get inconsistent across jobs and reviewers struggle to read them.
The solution
One tool for 2D plans, 3D visuals and asbestos-specific assets
Built around how asbestos teams actually work — from estimator to supervisor.
Build rooms, walls and storeys
Draw rectangular or polygon rooms, connect walls and set their height, thickness and materials. Organise the building into storeys.
Shape roofs and ceilings
Choose flat, mono-pitch, gable, hip and specialist roof forms. Set pitch, direction, coverings and edge trims, then inspect the result in 3D.
Add enclosure zones
Mark the work area with a coloured zone. Add walls and sheeting separately to represent its physical enclosure. Grass and road surfaces provide site context.
Configure airlocks and baglocks
Choose chamber sizes and stages, with straight, left-turn and right-turn layouts for two- and three-stage units. Check the layout in 2D and 3D.
Show floor and wall polythene
Apply room floor polythene and place sheeting with its own size, slope, colour and opacity to communicate the enclosure layout.
Drag-and-drop assets
Drag library assets into the 2D plan or 3D scene, or click to place them in the active view. On touch screens, use the asset drag handle.
Add waste, transit and safe routes
Coloured route lines that read clearly on any plan.
Add signs, barriers and equipment
Temporary site fencing, warning signs, vacs, DCUs and welfare units.
Room and wall measurements
Show wall lengths, room spans, area and perimeter. Labels update with the drawing; visibility controls let you show the detail you need.
2D and 3D in sync
One shared scene model. Move it in 2D and it updates in 3D — or use Split view to watch both at once.
Layers and visibility
Toggle building, zones, routes, signs and equipment layers per project.
Undo, redo and autosave
Undo and redo edits during your session. Changes save automatically while connected; the save indicator confirms their status.
Project dashboard
Cloud-saved projects with statuses, client/site details, thumbnails, notes and search. Paid subscriptions also support read-only snapshot links.
Export visuals
Export PNG/JPG from either view. Paid plans add clean high-resolution images, PDF and 2D SVG. Include an optional scene key and title block.
One shared scene
Build once. View it in 2D or 3D.
Move an item in the 2D plan and it updates in 3D. Move it in 3D and the 2D plan updates too. There is only one project — no duplicate models to maintain.
2D Plan Mode
Document-ready 2D visuals
Clean enclosure plans with asbestos-specific symbols, dimensioned walls and snap-to-grid drawing.
3D Enclosure Mode
Inspect the layout in 3D
Generate 3D views of walls, enclosures, airlocks, baglocks, NPUs and site equipment.
Drawing export
Export-ready visuals
Export PNG/JPG on every plan. Paid plans add PDF and 2D SVG. Add a key and title block in separate sheet margins. The sample below is an exported drawing for a fictional project.
Quick start
Your first enclosure plan, step by step
No CAD install, no stencil building — a practical first session in the browser.
- Create a room outline — or upload a floor-plan backdrop on a paid plan and trace over it
- Draw the enclosure walls and sheeting, and use zones to mark work areas
- Place airlocks, baglocks and an NPU from the library; use the route tools to draw waste and transit paths
- Switch between 2D plan and matching 3D view
- Add a title block and scene key on export
- Export a watermarked preview on Free Preview (clean exports on paid plans)
AsbestoPlan Academy
See the editor in action
Watch short, narrated tutorials on rooms, planning assets, routes, 2D and 3D views, and export. Browse freely — no account needed.
Browse video tutorialsExports
Export visuals for documents and site communication
Take your plan from the editor straight into project documents, client packs and site briefings.
Free Preview
2D & 3D export (PNG / JPG)
Export the enclosure plan and the 3D view as PNG or JPG. PNG supports transparency; JPG uses a solid background. Free Preview exports carry a watermark.
Paid plan
Watermark-free, high-resolution
Paid plans remove the watermark and export both views at high resolution for crisp printing and client communication.
Paid plan
PDF & SVG export
Export 2D plans as SVG or scale-accurate PDF. The 3D view is a rendered image. Available with the One Project Pass and every subscription.
Available
Scene key & title block

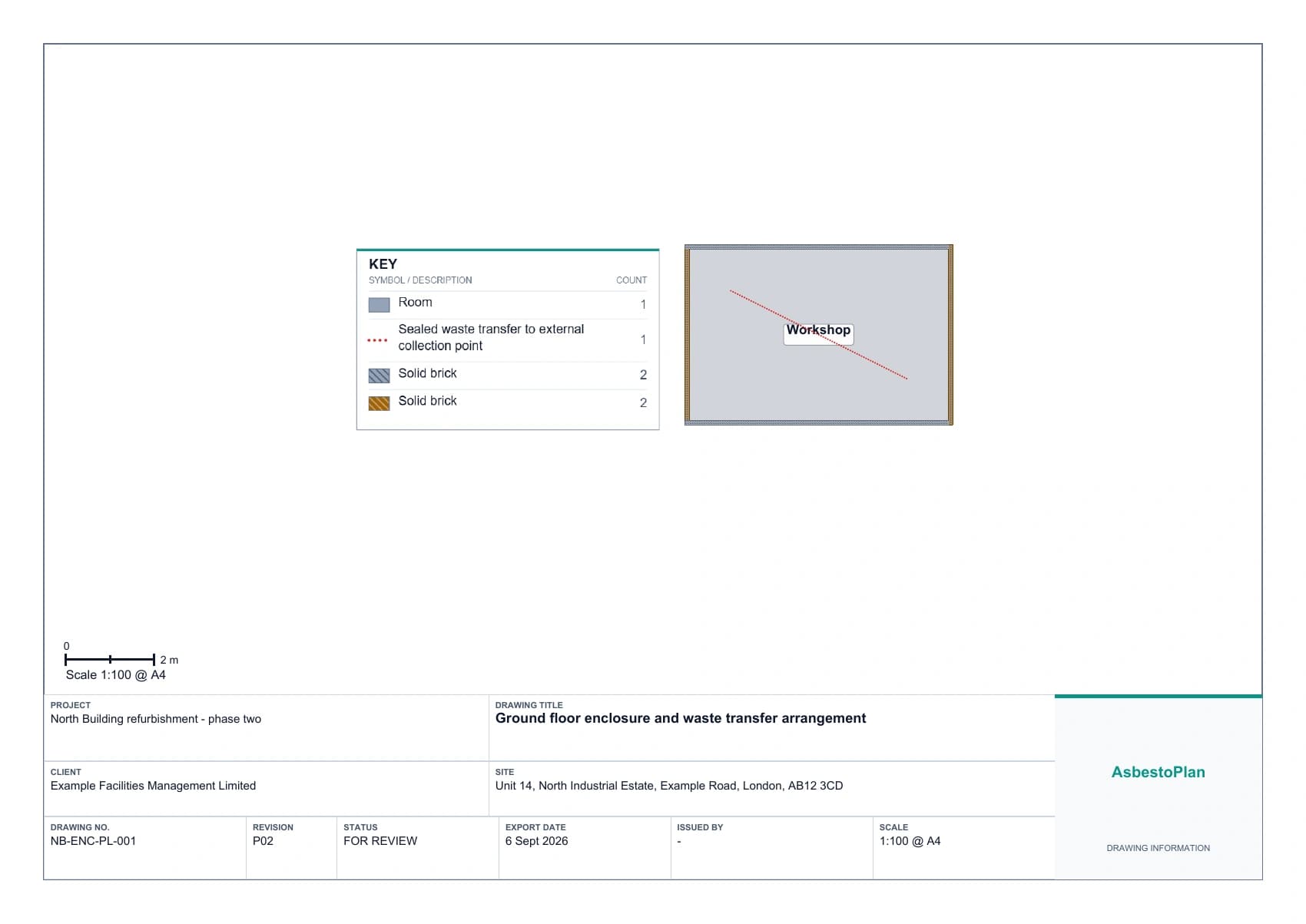

Add a key in its own margin and a title-block footer with project, drawing number, revision, status, client, site, date and scale. Company logos require a paid plan.
On the roadmap
Planned
PDF report & item schedule
A composed report with project details, plan, render, legend, notes and an auto item schedule.
Sample output
See what you get when you export
See a matched pair of editor views and real title-block and key output from a separate fictional sample drawing. Download the sample PDF to inspect the complete sheet.

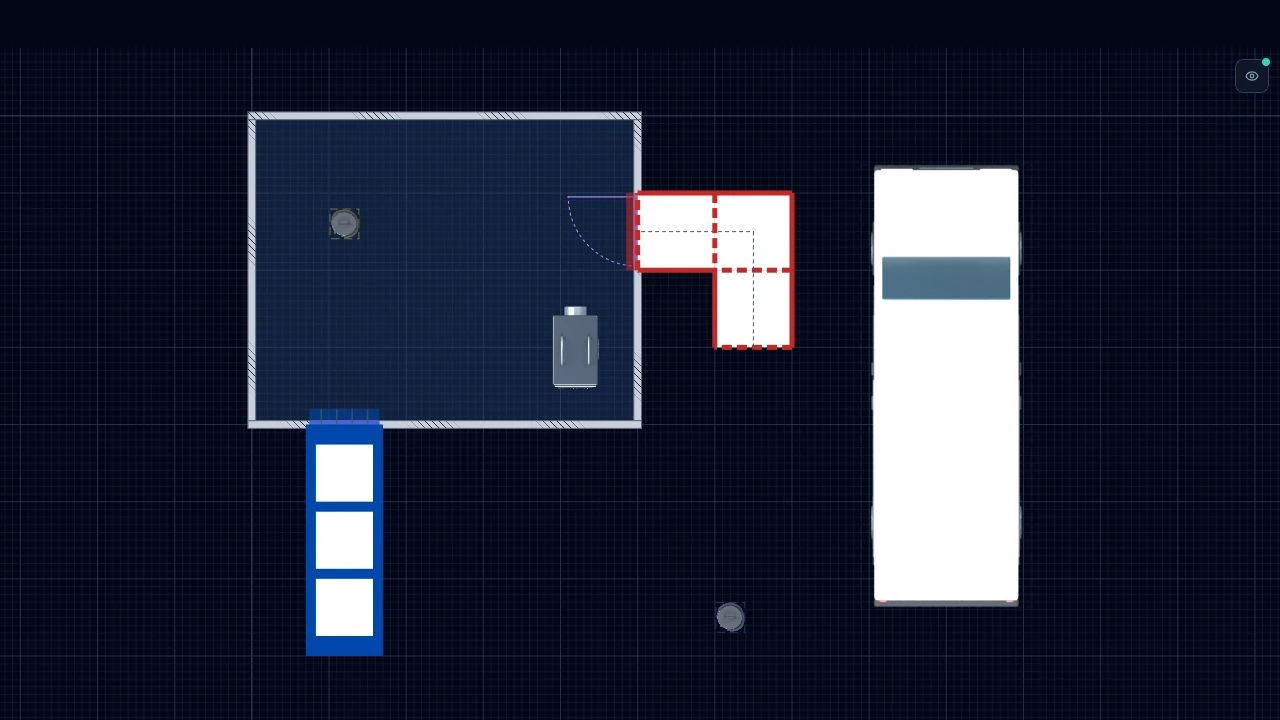

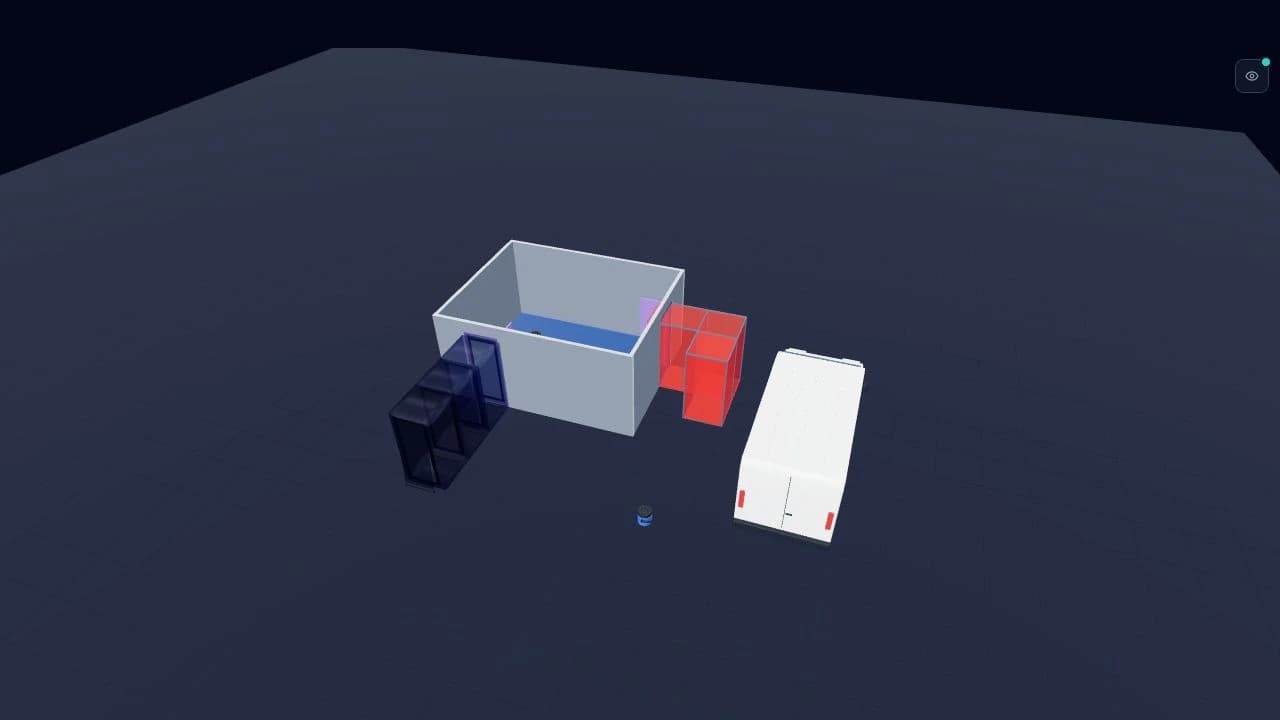

A view captured from the editor, showing a room, straight airlock, dogleg baglock, NPU and generic equipment. PNG/JPG export is available on all plans; paid plans add PDF and 2D SVG.
Asset library
Built-in asbestos enclosure asset library
217 asbestos-specific 2D symbols across 15 categories — airlocks, baglocks, NPUs, DCUs, vacs, fencing, signs, skips and more. Many include a matching 3D model; drag any asset into the scene and switch between 2D and 3D thumbnails.
Asbestos Survey
17 assets
Asbestos Materials
6 assets
Enclosure
5 assets
Air Management
14 assets
Airlocks & Baglocks
9 assets
Access Equipment
11 assets
Scaffolding
10 assets
Welfare
8 assets
Power & Monitoring
11 assets
Cleaning Equipment
10 assets
Site Equipment
43 assets
Building
14 assets
Kitchen
46 assets
Surfaces & Areas
2 assets
Warning & Safety
11 assets
Asset sidebar preview
MLS
3-stage airlock
2D3D
2-stage baglock
2D3D
NEG / NPU — 1500 m³/hr class
2D3D
Class H Vacuum
2D3D

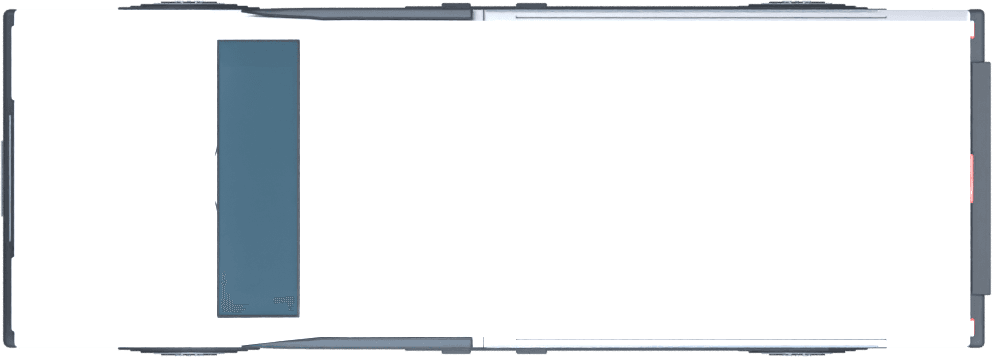

Panel Van (White)
2D3D
Wet Vacuum
2D3D
Generic planning assets: AsbestoPlan assets are generic visual planning symbols created to help communicate enclosure layouts, equipment positions, routes and site setup. They are not manufacturer-specific product drawings, approved safety signs, legal signage, equipment specifications, compliance certification, RAMS, plans of work or substitutes for competent professional judgement. Users must ensure all real-world equipment, signs, labels, controls and documentation meet current legal, project, company and manufacturer requirements. Read the full product disclaimer.
Equipment in both views
Plan with matching 2D symbols and 3D models
These previews use the current editor artwork. Generic, unbranded equipment includes panel vans, four NPU sizes, wet vacuums and Class H vacuums.

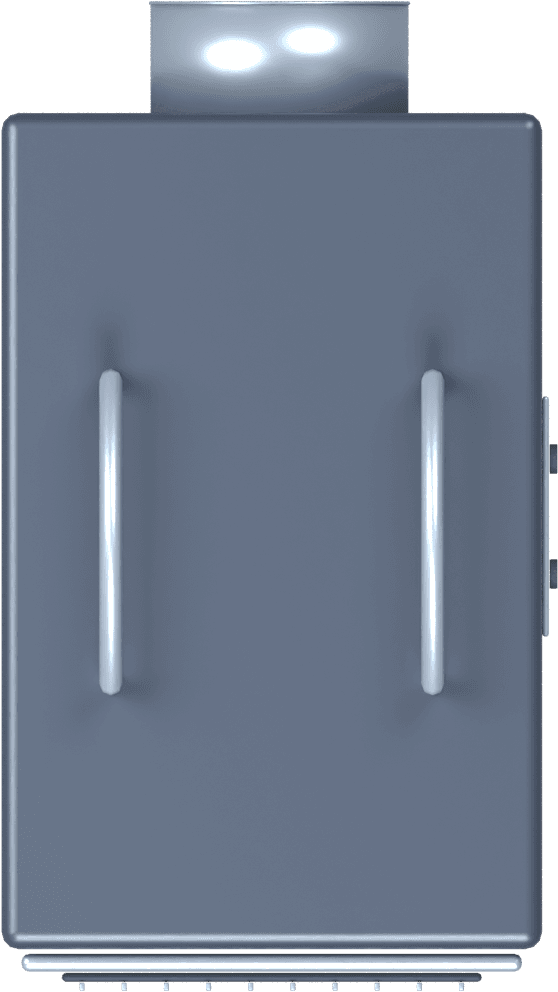

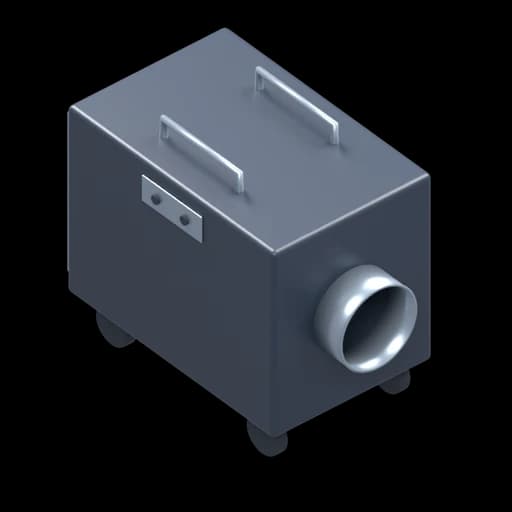

NEG / NPU — 1500 m³/hr class
Default model size: 600 × 1068 × 856 mm
Width × depth × height

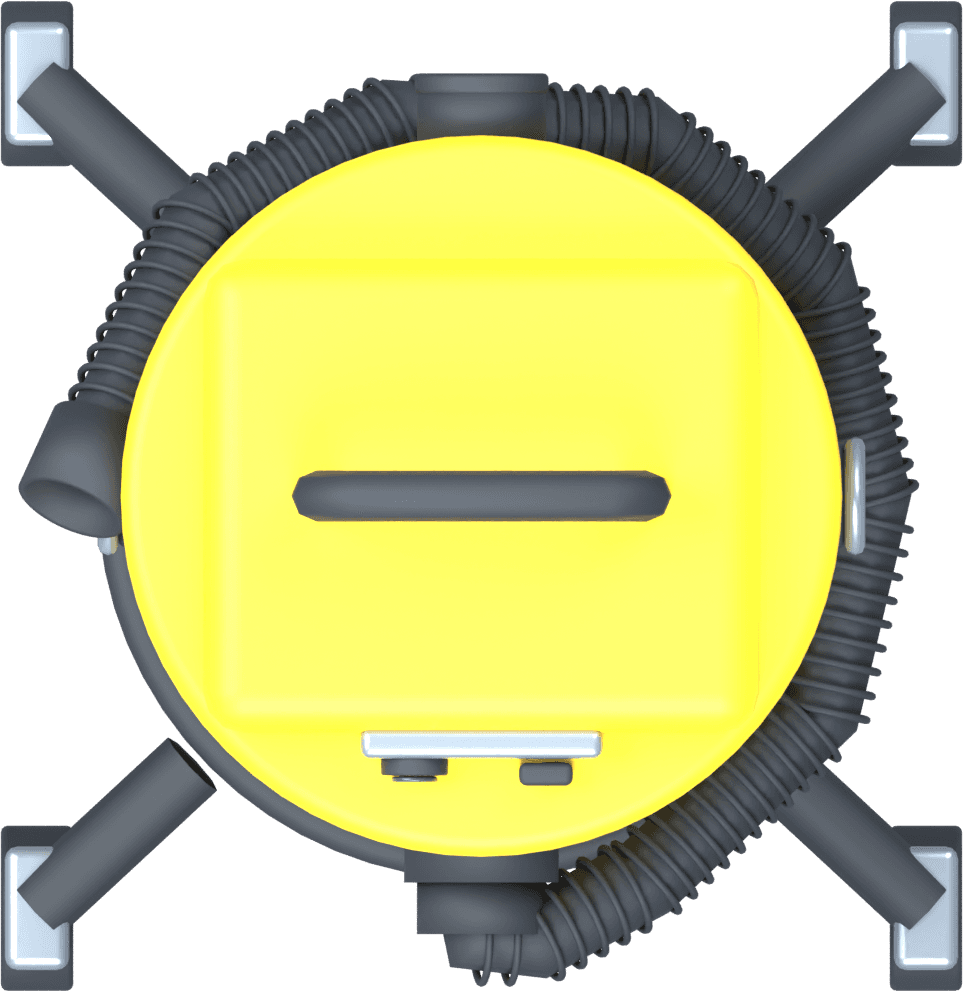

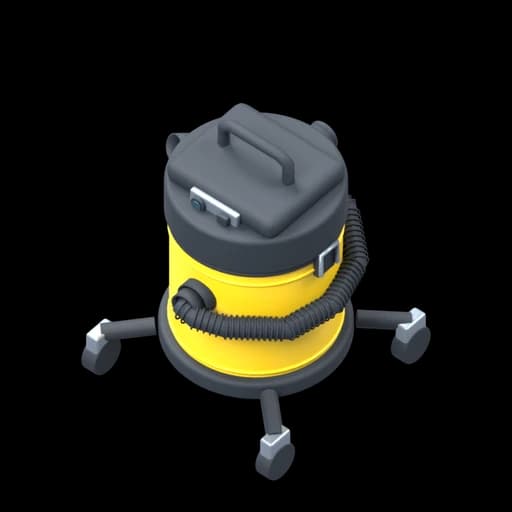

Class H Vacuum
Default model size: 373 × 384 × 494 mm
Width × depth × height
Check the dimensions of the equipment intended for your site when setting out the plan. Browse the asset library.
Floor plan backdrop — paid plans
Trace enclosures over an existing floor plan
On any paid plan, upload a floor-plan image and set its scale by resizing it or calibrating a known distance. Trace manually, or try assisted wall and opening detection (Preview) on clear plans with horizontal and vertical walls. Review suggested windows, door types and swings before creating editable geometry. The image can also appear beneath the 3D model as a reference.
Floor-plan tracing illustration
Paid planWidth
12 000 mm
Height
8 400 mm
Opacity
60%
Upload PNG, JPG or WebP
Drop in a survey scan, an architect drawing or a quick site sketch — uploaded straight to your project.
Set the real-world scale
Enter the floor plan width and height in mm, or calibrate against a known distance. Check your traced dimensions against the source drawing.
Opacity, position and rotation
Fade the backdrop to a guideline, nudge it into place and rotate it to align with your grid.
Lock it once aligned
Locking the backdrop prevents accidental drag while you trace your enclosure on top.
Colours & materials
Customise colours to match the job
Change polythene, wall, zone and route colours in a few clicks. Each placed object stays independent — recolouring one item does not change the rest of the project.
- Common polythene colour presets — clear, white, black, royal blue, green, red and orange — so teams can match their own company standards and project conventions.
- Set a material and colour for all walls of a room, or adjust individual wall sections.
- Highlight zones and routes in your own colours to suit each plan.
- Individual object changes stay local. Room-wide controls deliberately update all of that room’s walls, including shared walls.
Polythene colour presets
Clear
White
Black
Royal Blue
Green
Red
Orange
These match the polythene colour options in the editor — the same palette used on airlocks, vision panels and enclosure zones.
Royal Blue polythene
Clear polythene
White polythene
Orange enclosure zoneRed warningGreen safe routeGrey frameBlack equipment
Templates
Start faster with enclosure templates
Skip the blank page. These starter templates load rooms with preset dimensions; enclosure examples also include zones and equipment. Adjust every layout to the site before use.
Boiler / Plant Room Enclosure
5.0 × 4.0 m + zone
Sign up to use
Domestic Room
4.0 × 3.5 m
Sign up to use
Commercial Floor
12.0 × 8.0 m
Sign up to use
Corridor / Riser Enclosure
12.0 × 1.8 m + zone
Sign up to use
Garage / Roof Enclosure
6.0 × 6.0 m + zone
Sign up to use
Strip-out Area
8.0 × 6.0 m + zone
Sign up to use
Project management
Keep every enclosure plan organised
Organise your own projects with client and site details, statuses, thumbnails and notes. The example below uses fictional project details.
Your Projects
Plan, edit and export enclosure drawings.
Search projects...
+ New project
12
Active
5
This month
3
In progress
6
Exported
2
Drafts
4
Archived
In Progress
Boiler Room Enclosure — Unit 4
ABC Properties Ltd
123 Industrial Estate, Birmingham
Updated 2 hours agoOpen
Ready for Review
School Plant Room Strip-Out
Greenfield Academy Trust
Greenfield Lane, Manchester
Updated YesterdayOpen
Exported
Domestic Kitchen Removal
Private
Park Crescent, Leeds
Updated 3 days agoOpen
Who it’s for
Made for asbestos professionals
From estimator to supervisor, AsbestoPlan fits the people responsible for getting enclosures right on the day.
Licensed asbestos removal contractors
Faster enclosure planning across multiple jobs.
Site supervisors
Clear plans for site briefings and team handovers.
Contracts managers
Standardised drawings across every site under your remit.
Estimators
Visualise enclosures during quoting and pricing.
Asbestos surveyors
Sketch proposed enclosures during surveys and hand clear visuals to removal teams.
Document teams
Drop polished plan images into your existing project documentation.
Asbestos consultants
Communicate proposed enclosure approaches clearly to clients.
Office & admin staff
Build polished enclosure drawings without specialist CAD training.
See workflow-specific examples in our use-case guides.
Scope
What AsbestoPlan does — and does not do
Clear scope matters in a compliance-heavy industry. Use AsbestoPlan for visual planning and communication — statutory documents remain your responsibility.
What it does
- 2D enclosure plans and matching 3D visuals
- Asbestos asset library (airlocks, NPUs, routes, signs)
- Export PNG, JPG, PDF and SVG with title block and scene key
- Templates and team workspace on paid plans
- Visual support for RAMS, client packs and site briefings
What it does not replace
- It does not replace RAMS, plans of work or method statements
- It does not provide HSE approval or compliance certification
- It does not replace competent person sign-off or licensed-contractor duties
- It does not handle air monitoring, clearance or notification submissions
Honest scope
What AsbestoPlan is not for
We are deliberately focused on enclosure visual planning — so you know exactly where we fit in your workflow.
HSE approval or compliance certification
AsbestoPlan is not endorsed, approved or certified by HSE or any regulator.
Automatic RAMS or plan-of-work generation
You produce enclosure visuals to include in your documents — not the statutory paperwork itself.
A replacement for competent asbestos professionals
Final enclosure design, risk assessment and sign-off remain with qualified people in your organisation.
Full architectural CAD or BIM software
Purpose-built for enclosure visual planning — not general building modelling.
A substitute for site-specific risk assessment
Every job needs its own competent review of controls, access, monitoring and emergency procedures.
Pricing
Simple pricing for professional asbestos enclosure plans
Start free, create one clean plan for £29, or subscribe when your firm needs unlimited exports, branding and reusable templates.
Free Preview
Try the 2D + 3D enclosure planner before committing.
£0
- Full 2D + 3D editor
- Up to 2 saved projects
- Full asbestos asset library
- Watermarked PNG/JPG export
- 1 user
For regular projects
Business
For small asbestos firms creating professional enclosure drawings without CAD.
£49/mo
Billed monthly
- 3 users included
- Invite & manage your team
- Reusable project templates
- Unlimited projects
- Clean PNG/JPG, PDF & SVG export
- High-resolution & scale-accurate PDF
- Your company logo on exports
- Floor-plan backdrop uploads
- Share read-only 2D/3D preview links with clients
- Full asbestos asset library
- 14-day free trial — no charge until it ends
- Priority email support
Extra users £10/mo each
Start 14-day trialEligible customers only · Card required · Renews automatically unless cancelled
Team
Standardise enclosure drawings across estimators, admin and site teams.
£129/mo
Billed monthly
- Everything in Business
- 10 users included
- Central company workspace
- Shared company templates & team standards
- Invite & manage your team
- Roles & permissions (owner / admin / member)
- 14-day free trial — no charge until it ends
- Priority support
Extra users £10/mo each
Start Team trialEligible customers only · Card required · Renews automatically unless cancelled
Only need one plan?
— £29 one-offCreate and export one professional enclosure drawing pack for £29, with no subscription. Get 14 days of paid drawing features and clean exports, with up to 2 saved projects. The pass does not renew.
Need multiple branches or custom setup?
Company — from £249/month. Contact support for a quote, including any annual arrangement. Discuss onboarding, template setup, branch management and billing for your team.
Final pricing depends on users, branches, onboarding and custom template requirements.
Compare all plans
| Free Preview | One Project Pass | Business | Team | Company | |
|---|---|---|---|---|---|
| Monthly price | £0 | £29 one-off | £49/mo | £129/mo | From £249/mo |
| Annual price | — | — | £490/yr | £1290/yr | By quotation |
| Users included | 1 | 1 | 3 | 10 | Custom |
| Invite & manage teammates | |||||
| Saved projects | 2 | 2 | Unlimited | Unlimited | Unlimited |
| 2D editor | |||||
| 3D preview | |||||
| Asbestos asset library | |||||
| Watermarked export | |||||
| Clean PNG / JPG export | |||||
| PDF export | |||||
| 2D SVG export | |||||
| 2D PDF at a chosen print scale | |||||
| Floor-plan backdrop upload | |||||
| Title block | |||||
| Company logo on exports | |||||
| Client preview link (read-only 2D/3D) | |||||
| Project version history | |||||
| Per-project export history | |||||
| Shared company templates | |||||
| Team-wide version & export history | |||||
| Roles & permissions | |||||
| Branches & departments | |||||
| Onboarding | Guides & videos | Guides & videos | Guides & videos | Guides & videos | Discuss with support |
| Support | Limited | Limited | Priority email | Priority | Priority |
Prices in GBP. Business includes 3 users and Team includes 10 — invite colleagues and share company templates from your dashboard. Eligible customers receive one 14-day Business or Team trial. A card is required at checkout. Billing starts automatically at the selected monthly or annual price unless you cancel before the trial ends. AsbestoPlan is a planning support tool, not HSE-approved compliance certification.
FAQs
Frequently asked questions
No. AsbestoPlan runs entirely in your browser with its own asbestos-specific 2D symbols and 3D models. You do not need to buy or install separate general-purpose drawing or 3D software.
Yes. Drag library assets into either the 2D plan or the 3D scene. On a touch screen, use the drag handle on the asset card. Clicking an asset places it near the centre of the active view; you can then adjust its position and dimensions.
Yes, on any paid plan (One Project Pass, Business, Team and Company). Upload a PNG, JPG or WebP floor plan, set its real-world dimensions or calibrate a known distance, then draw over it. The backdrop has opacity, position and lock controls; uploading an image does not automatically create walls.
Customer uploads of custom symbols or 3D models are not currently available. You can use the built-in library and its object controls; paid plans also support floor-plan backdrops and company logo uploads.
Yes. The 2D plan and 3D enclosure view share the same project model. Move an item in 2D and it updates in 3D. Move it in 3D and the 2D plan updates too.
Yes. Polythene, walls, zones, routes, frames and equipment can all be recoloured per object. Each placed item stays independent — recolouring one airlock does not affect any other.
Changes save automatically after you stop editing while connected. Check the save indicator before closing the editor; it also reports saving errors. You can save manually and use undo and redo during your editing session.
Every plan can export the 2D plan and 3D view as PNG or JPG. PNG supports transparency; JPG uses a solid background. Free Preview exports carry a watermark. The One Project Pass, Business, Team and Company add clean high-resolution exports, PDF and 2D SVG, including scale-accurate 2D PDF printing. A scene key and title block can be included. A composed report with an item schedule is planned.
Room spans, area and perimeter use the inside wall faces and each wall’s modelled thickness. Irregular rooms show maximum internal spans. Standalone walls show centreline lengths, including arc length for curved walls. Include finishes in the wall thickness and check the model against site measurements before issuing a drawing.
On a paid plan, choose a numeric scale for a 2D PDF and print it at actual size (100%), without fit-to-page scaling. Check the exported scale and a known dimension. PNG/JPG, 3D views and fit-to-page exports are not to scale. Accuracy depends on the dimensions and calibration entered into the project.
AsbestoPlan produces drawings for your existing project documents. RAMS generation is currently in internal development and is not available to customers. The public product is the drawing and visual planning editor.
No. AsbestoPlan is not HSE-approved or compliance certified. Final enclosure design and statutory duties remain with competent asbestos professionals.
You can use AsbestoPlan to produce enclosure visuals that support documentation for licensed and non-licensed work alike. It is a planning and communication tool, not a substitute for the formal duties around licensed work — notification, risk assessment, method statements and plans of work remain with the competent person and, where required, the licensed contractor.
Live drawings belong to their creator and are protected by account access controls. Paid subscriptions can share read-only snapshots by link; Team and Company also provide workspace export history. Export records use private storage and short-lived download links. Dashboard → Account & privacy lets you download account records as JSON or delete your account; download drawing files separately before deletion.
Eligible customers can start one 14-day Business or Team trial. A card is required at checkout. Unless you cancel before the trial ends, the subscription automatically becomes paid and renews at the selected monthly or annual price. If paid access ends and no other paid entitlement applies, your account returns to Free Preview: saved projects remain, new exports are watermarked and the free project limit applies. Download any clean exports you need before paid access ends.
Yes. Use Dashboard → Billing to manage your subscription through Stripe. Cancellation stops future renewals; paid access continues until the end of the current monthly or annual billing period. Cancellation does not automatically refund an annual payment.
Yes. Business includes 3 users, Team includes 10 and Company is custom. The workspace owner invites colleagues by email from Dashboard → Team and sets roles (owner / admin / member). Shared company templates keep new drawings consistent. Live CAD projects stay with the person who created them — Team and Company add workspace-wide export and version history, not live co-editing. Company adds branches/departments with advanced admin controls.
Title blocks are available on every plan. Adding your company logo requires the One Project Pass, Business, Team or Company.
The dashboard and editor have layouts for phones and tablets, including touch controls and collapsible panels. A larger screen with a mouse or trackpad is best for detailed drawing. Complex 3D scenes also depend on your device’s graphics performance.
Yes. Two- and three-stage airlocks and baglocks offer straight, left-turn and right-turn layouts. Choose the layout in the selected object’s controls; the 2D symbol and 3D model use the same configuration. Check chamber dimensions against your site requirements.
Planning support, not compliance approval
AsbestoPlan supports visual enclosure planning and project documentation. It does not certify enclosure safety, approve asbestos work or replace competent professional judgement. Final enclosure design, risk assessment, method statement, plan of work and statutory compliance remain the responsibility of competent asbestos professionals and, where required, licensed asbestos contractors.
