Roofs · Beginner · 0:35
Choose a roof shape
Find the room roof controls and compare flat, mono, gable and hip roofs in 3D.
Before you start: Start with a room in your drawing. The Draw your first room lesson explains the basics.
British male AI narration · English captions · Fictional demonstration project
Follow along with the transcript
0:00Open the roof controls
Select a room and open Roof and ceiling. The shape buttons change that room’s roof. Switch to 3D so you can see what each choice produces.
0:10Compare flat and mono
Choose Flat for a flat-roof form. Choose Mono for a single sloping plane. The available settings change with the shape you select, so you can refine the roof after choosing its basic form.

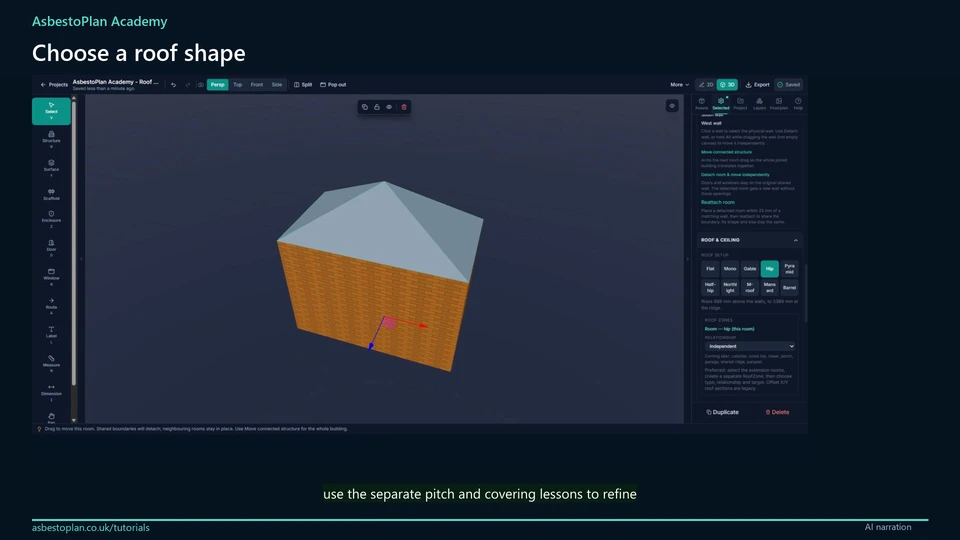

0:22Compare gable and hip
Gable creates two main slopes meeting at a ridge. Hip adds sloping ends. Choose the shape that represents your building, then use the separate pitch and covering lessons to refine its appearance.
