Planning assets · Beginner · 0:43
Explore NPU models and exhaust positions
Play here, or watch on YouTube (opens a new tab).
British male AI narration · English captions · Fictional demonstration project
Find an NPU model and switch between rear, left-side and right-side exhaust options.
Before you start: A project where you can place training equipment.
Try a fictional practice drawing
Explore the editor with your own practice project. Free Preview needs no card and includes two saved projects and watermarked exports.
Follow along with the transcript
0:00Find an NPU model
AsbestoPlan includes negative pressure unit models in Air Management. Open the library, choose the model that represents your specified equipment and place it on the drawing.

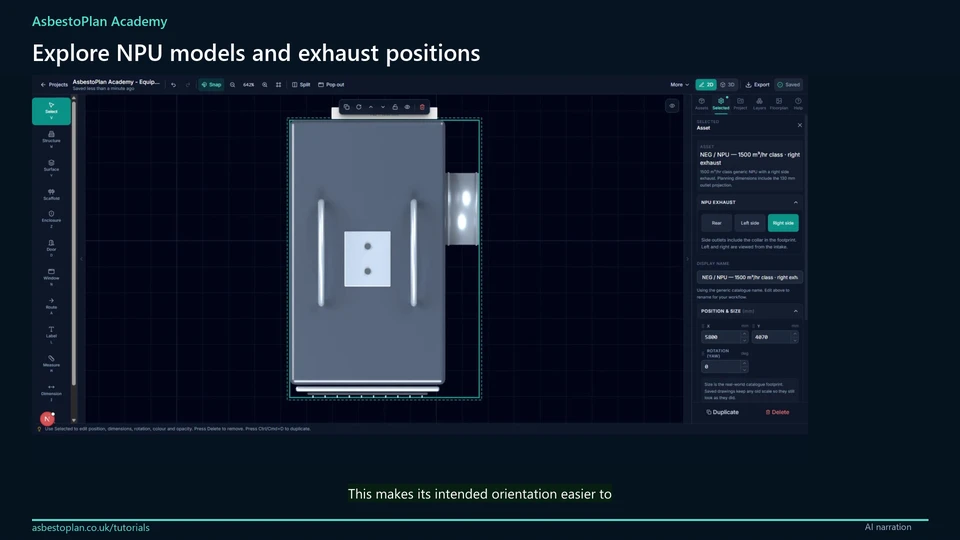

0:10Change the outlet position
Select the model and open NPU exhaust. Choose Rear, Left side or Right side. The model updates to show the outlet in the selected position.
0:20Read the orientation
Left and right are viewed from the intake. Keep that face in view while comparing the options. A side outlet also adds its collar to the model's footprint.
0:31Review in 3D
Switch to 3D to see the chosen outlet, then return to the plan to position the equipment in your drawing. This makes its intended orientation easier to communicate.
