Export a plan as an image
Play here, or watch on YouTube (opens a new tab).
British male AI narration · English captions · Fictional demonstration project
Choose the 2D view, framing and presentation options, preview your drawing, then download a PNG image for a document.
Before you start: Open a drawing and use an account or project with export access.
Try a fictional practice drawing
Explore the editor with your own practice project. Free Preview needs no card and includes two saved projects and watermarked exports.
Tutorial resources
Supporting files and companion videos for this lesson.
Follow along with the transcript
0:00Turn your drawing into an image
Here is how to turn your drawing into a clear image for a document. We will choose the view, set the presentation options, then preview the result before downloading.
0:11Choose the view and format

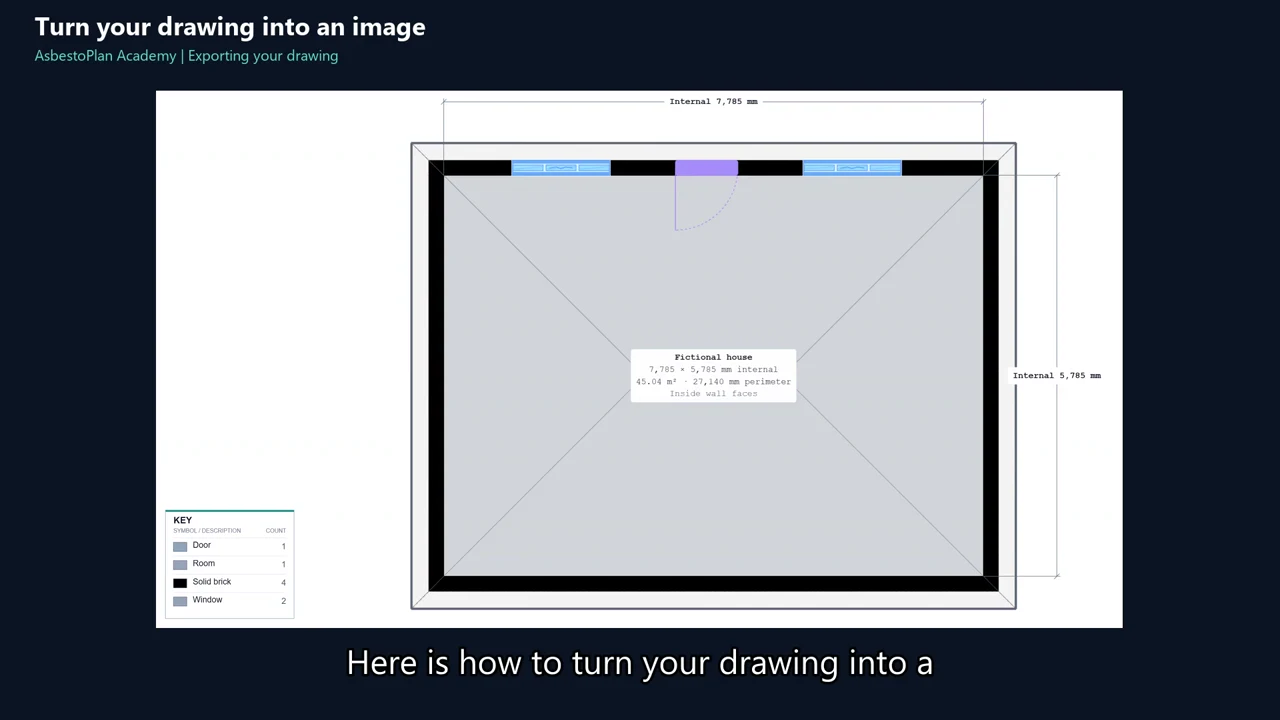

Open Export. Keep Whole drawing selected and choose 2D plan. Fit plan includes the complete drawing, even if you have zoomed in. Choose PNG for a lossless image.
0:24Set the presentation options
Include the key when readers need the symbol descriptions. White gives a clean background for a document. You can also choose a title block or show the grid when those details are useful.
0:37Preview and download
Click Preview export. Inspect the generated image, including the key and any dimensions. Use Back to settings to make a change, or Download 2D PNG to save this image. Choose Done to return to the editor.
