Assets · Beginner · 0:43
Find, place and adjust an asset
Search for an airlock, place it on the plan, then change its rotation and position using the Selected panel.
Before you start: Open a project in 2D. This example uses a fictional training room.
British male AI narration · English captions · Fictional demonstration project
Follow along with the transcript
0:00Search the library
Let's add an airlock to our training drawing. In Assets on the right, type airlock into the search box. The matching items appear below.
0:08Place a card on the canvas
Choose the three-stage airlock card. A click places it at the centre of the current view. Now open Selected on the right to see its properties.
0:19Change the rotation
Open Position and size in Selected. Set Rotation to ninety degrees, then press Tab. Watch the plan symbol turn, so you can check which way it faces.

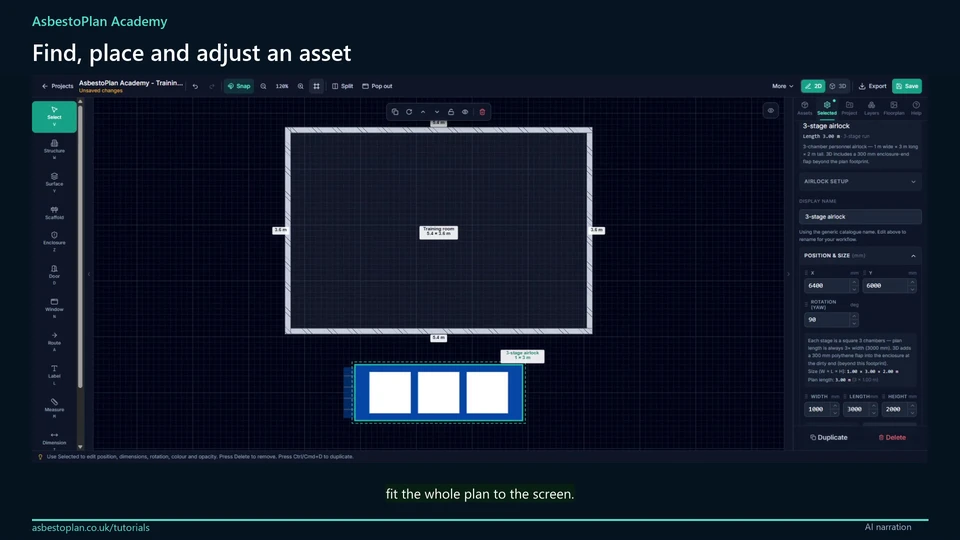

0:30Set its position
Use X and Y to adjust its position on the plan. These values are in millimetres. Here, we move the airlock below the room, then fit the whole plan to the screen.
Troubleshooting these tools
