Views · Beginner · 0:46
Use 2D, 3D and split view
British male AI narration · English captions · Fictional demonstration project
Switch views, open the 3D view options, hide a roof to see inside and compare both views together.
Before you start: Open a project containing a room or another 3D object.
Follow along with the transcript
0:00Switch to 3D
Want to check how your drawing looks in three dimensions? Choose three D in the top bar. The editor shows the same room and assets from your two D plan.
0:10Find the view options
The ceiling covers the room's interior. Open View options using the eye button near the top-right corner of the canvas. Find the row for the storey you want to inspect.
0:22Hide the roof for a cutaway
Choose the roof control for that storey to reveal the interior. This hides the roof in the view; it doesn't delete it. Choose the control again to bring it back.

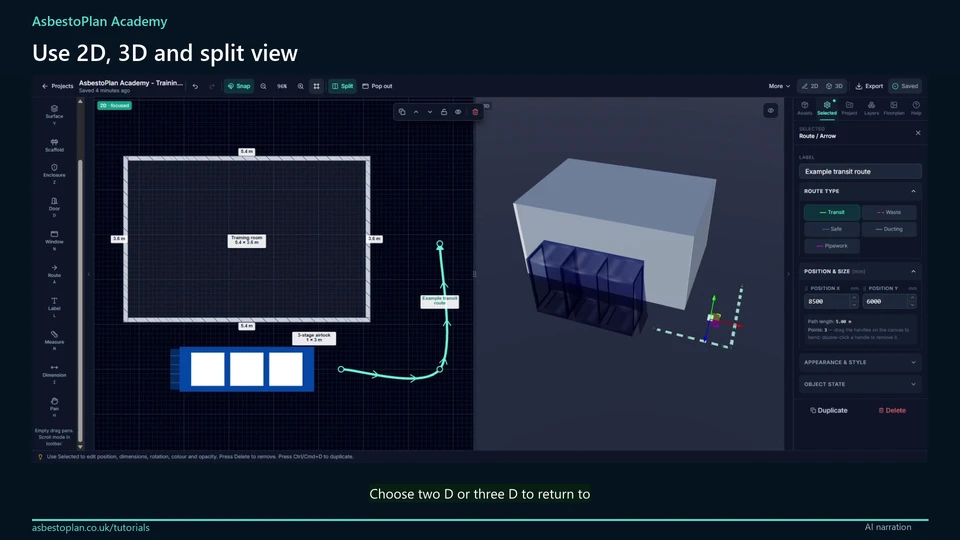

0:33Compare the views together
Choose Split to see the two D plan beside the three D view. Use this to compare the layout with its model. Choose two D or three D to return to a single view.
